ServicesV3-DTF 650 Pro – DTF Heat Transfer Printer
Dtf printer is called direct to film printer which is a unique printing technology that involves printing designs onto special PET films for transfer onto to a variety of garments (and other substrates).

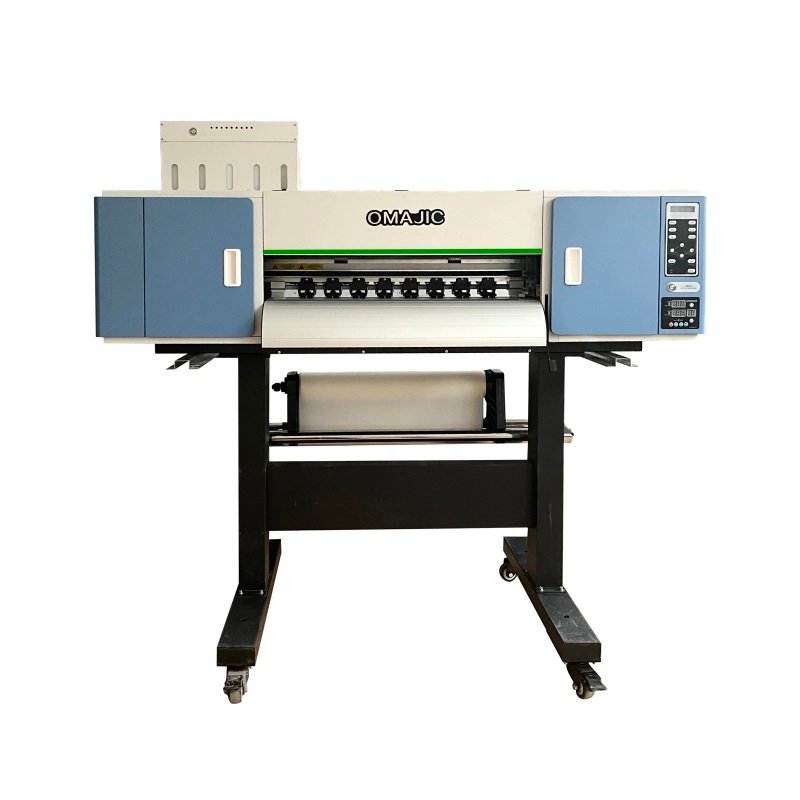

V3-DTF 650 Pro – DTF Heat Transfer Printer
Model: V3-DTF 650 Pro | Print Heads: 2 / 4 Epson i3200-A1
Precision Print. Perfect Transfer.
🖨️ Product Overview
The ER-DTF 650 Pro is a high-speed Direct-to-Film (DTF) printing solution built for businesses seeking crisp, vibrant, and washable transfers on garments and fabrics. Powered by 2 or 4 Epson i3200-A1 industrial-grade printheads, it delivers fast and high-resolution output on heat transfer PET film, ideal for cotton, polyester, blends, leather, denim, and more.
This DTF system ensures reliable, cost-effective operation with automated powdering, curing, and drying, making it perfect for t-shirt manufacturers, apparel decorators, and textile print shops.
✅ Key Features
Print Technology:
Equipped with 2 or 4 Epson i3200-A1 printheads
CMYK + White ink configuration for opaque and vibrant prints
Printing Material:
Special heat transfer PET film (Cold Peel / Hot Peel compatible)
Print Width:
Max Media Width: 650 mm (25.5 inches)
Suitable for large garment transfers and roll-based printing
Printing Resolution:
Up to 1440 dpi, delivering fine gradients and image details
Print Speed (approximate):
2-head: 8–15 m²/h
4-head: 15–28 m²/h (depending on pass mode)
Integrated System:
Auto powder shaker with consistent adhesive powder distribution
Conveyor belt oven with infrared curing and temperature control
Vacuum suction platform ensures media flatness and stability
Inks & Film Compatibility:
DTF Pigment Inks (CMYK + White)
Compatible with all standard DTF PET transfer films
Software Support:
RIP Software: Maintop / FlexiPrint / PrintFactory / Photoprint
OS: Windows 7 / 8 / 10 / 11 (64-bit)
Environment:
Temperature: 20°C–30°C
Humidity: 40%–65%
Power: 220V, 50Hz, ≥15A
🎯 Applications
Cotton, polyester, nylon, denim, leather
T-shirts, hoodies, jackets, bags, shoes, hats
Custom merchandise, sportswear, uniforms
💼 Why Choose ER-DTF 650 Pro?
🖨️ Industrial-grade Epson printheads for long-term reliability
🌈 Rich color + strong white ink layer for dark and light fabrics
⚡ High-speed + high-resolution output
🔁 Automated powdering & drying to streamline production
💸 Low ink cost and minimal maintenance
🛠️ Full setup, training & after-sales support by V3 Enterprises
📦 Specifications Summary
| Feature | Details |
|---|---|
| Print Heads | 2 / 4 Epson i3200-A1 |
| Max Print Width | 650 mm |
| Print Resolution | Up to 1440 dpi |
| Ink Type | CMYK + White DTF Pigment Ink |
| Media | Heat Transfer PET Film (Cold/Hot Peel) |
| Speed (2 Head) | 8–15 m²/h |
| Speed (4 Head) | 15–28 m²/h |
| RIP Software | Maintop, FlexiPrint, etc. |
| Power Supply | 220V ±10%, 50Hz, ≥15A |
| Weight / Dimensions | Varies based on head config |
📞 Get in Touch
Bring your textile printing to life with ER-DTF 650 Pro.
📩 Request a free demo or quote from V3 Enterprises today.
